Hot air circulation fan

Keywords：Thermal cycling fan,hot air circulating fan,high temperature

Hot air circulation fan

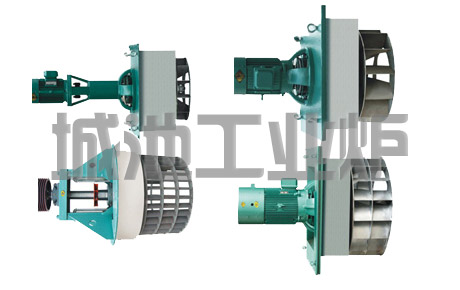

Hot air circulation fan can be divided into hot air circulating fan Saturday and centrifugal hot air circulating fan.

Axial air circulation fan is mainly used on a variety of glass products annealing furnace, Kao Hua furnace, ceramics oven, furnace metal components, and other products require the exchange of heat treatment furnace of hot air, especially in the kinescope industry widely used on heat treatment.

Axial hot air circulating fan, heat treatment industry is currently in wide use, low energy consumption, the new structure of a special fan. The main part of the fan with high temperature materials, can be applied in the following 800 ℃ hot air in continuous operation, no distortion, low noise, long life. On a regular basis (45 days / times -60 day / time) after injection of hot butter without water cooling.

Centrifugal hot air circulation fan for a variety of aluminum aging furnace, solid solution stove, oven, glass products in the circulating hot air furnace balance each other in the heat treatment industry, to solve problems in the furnace body temperature uniformity, improve product quality, while widely metal components for furnace, ceramics.

Centrifugal hot air circulating fan, is widely used in the heat treatment industry. It has a low power, high efficiency, smooth running, low noise characteristics. Fans are using high temperature materials, continuous operation without deformation below 800 ℃ hot air. Motors without any cooling liquid, just a regular injection of bearing extreme pressure lithium complex grease (30 days / times, 3-5 g / time). It has the advantage of easy installation and maintenance effort, long service life.

WHG hot air circulating oven specifications and parameters:

Model	Pressure (PD)	Air flow (M³/h)	Speed (R / Min)	Power (Kw)
WHG-2.5DI	165-105	780-850	910	0.75
WHG-2.5DII	285-250	1285-1470	1400	1.1
WHG- 3DI	250-175	1150-1385	910	0.75
WHG- 3DII	236-245	1785-2050	1400	1.1
WHG-3.5DI	170-105	1245-2215	910	1.1
WHG-3.5DII	510-375	2505-3410	1390	1.5
WHG- 4DI	230-115	2615-3515	910	1.1
WHG- 4DII	650-425	3620-5005	1410	2.2
WHG-4.5DI	260-150	3580-4900	910	1.5
WHG-4.5DII	750-455	5405-7150	1410	3
WHG- 5DI	350-225	4910-6150	940	2.2
WHG- 5DII	950-685	7345-8965	1440	4
WHG-5.5DI	450-285	6450-9050	940	2.2
WHG-5.5DII	1050-870	9385-12750	1445	5.5
WHG-6DI	610-468	9300-11550	940	2.2
WHG-6DII	1350-1085	13350-16465	1445	7.5
WHG-6.5DI	650-500	11150-13980	940	2.2
WHG-7DI	750-600	13310-14980	960	3
WHG-6DII	1350-1085	13350-16465	1445	7.5
WHG-8D	950-650	1665022580	960	5.5
WHG-9D	1056-810	22350-31250	970	11

WGB hot air circulating oven specifications and parameters:

Model	Flow m3 / h	Pressure Pa	Power Kw	Speed r / min
WGB-0.75AI	1100-1400	260-200	0.75	1390
WGB-0.75AII	700-1000	150-110	0.75	910
WGB-1.1AI	1500-1800	290-220	1.1	1400
WGB-1.1A（D）II	1500-2200	160-115	1.1	910
WGB-1.5AI	3200-4600	530-350	1.5	1400
WGB-1.5A（D）II	3600-4900	240-150	1.5	940
WGB-2.2AI	4800-6600	670-400	2.2	1420
WGB-2.2A（D）II	9500-14000	620-230	2.2	940
WGB-3AI	5500-8000	790-500	3	1420
WGB-3A（D）II	13000-15000	740-560	3	960
WGB-4AI	6500-8300	840-620	4	1440
WGB-4A（D）II	15000-18000	880-600	4	960
WGB-5.5AI	12000-16000	1300-1000	5.5	1440
WGB-5.5A（D）II	17000-22000	900-650	5.5	960
WGB-7.5AI	14000-18000	1700-1200	7.5	1440
WGB-7.5A（C）II	18000-27000	960-680	7.5	970
WGB-11AI	17000-23000	1900-1400	11	1460
WGB-11A（C）II	22000-31000	1000-800	11	970
WGB-15AI	19000-27000	2050-1500	15	1460
WGB-15A（C）II	24000-33000	1250-1010	15	970
WGB-18.5AI	21000-31000	2200-1650	18.5	1470
WGB-18.5A（C）II	30500-39000	1360-1210	18.5	970
WGB-18.5AIII	30000-41000	1050-820	18.5	730
WGB-22AI	24000-36000	2700-1850	22	1470
WGB-22A（C）II	34000-46000	1520-1270	22	970
WGB-22AIII	35200-49000	1150-930	22	730
WGB-30AI	48200-63950	1860-1500	30	980
WGB-30AII	63500-69200	1750-1420	30	740
WGB-37AI	61800-77500	2070-1820	37	980
WGB-37AII	72400-80300	1920-1700	37	740
WGB-45AI	73500-82000	2200-1950	45	980
WGB-45AII	75000-87500	2100-1900	45	740
WGB-55AI	79400-88000	2370-2050	55	980
WGB-55AII	86000-95600	2280-2000	55	740
