Heavy duty hot air circulation oven



    Heavy-duty hot air circulation oven is a special large-scale electric heating oven designed for large quantities, heavy and heavy workpieces. It is mainly used for heating, drying, dehydrating, coating, painting and drying of workpieces in hardware, machinery and heavy industry. , heat removal, oil setting, preheating, tempering, aging and other thermal processing.

    The heavy-duty hot air circulation oven is divided into two types: flat bottom type and rail type. It is made of heavy-duty channel steel and angle steel. It has thick insulation layer and has the advantages of large loading weight, high load-bearing capacity, good temperature uniformity and convenient use. Special design saves time and maximizes productivity.

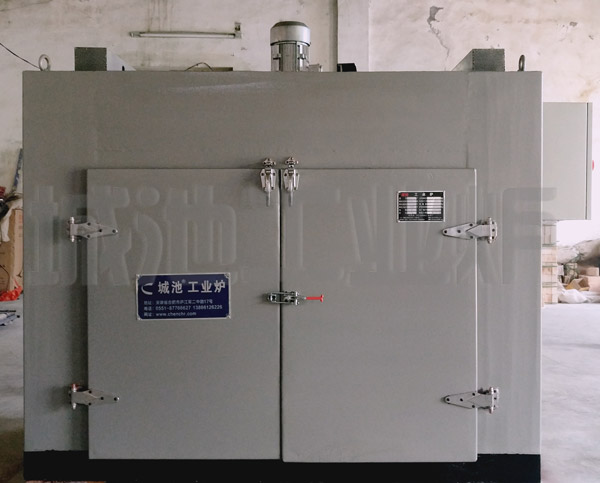

Heavy duty hot air circulation oven

Image oven detailed parameter introduction:

  Liner size: 1200mm wide x 1000mm deep x 900mm high

  Bottom reinforcement load ≥1800kg

  Operating temperature: RT (room temperature) -350 ° C (any adjustment setting)

  Temperature control accuracy: ±2 °C

  Temperature control mode: PID dual digital display intelligent temperature control, button setting, set value and actual temperature LED digital display

  Power supply voltage: 380V/50Hz

  Heating device: stainless steel electric heating tube

  Heating power: 36KW

  Air supply mode: Top suction type double side air duct vertical strong pressure type air transport

  Air supply device: high temperature long axis motor with oven dedicated multi-wing wind wheel

  Other specifications: Can be customized according to the actual needs of customers, various specifications and functions of the drying oven
